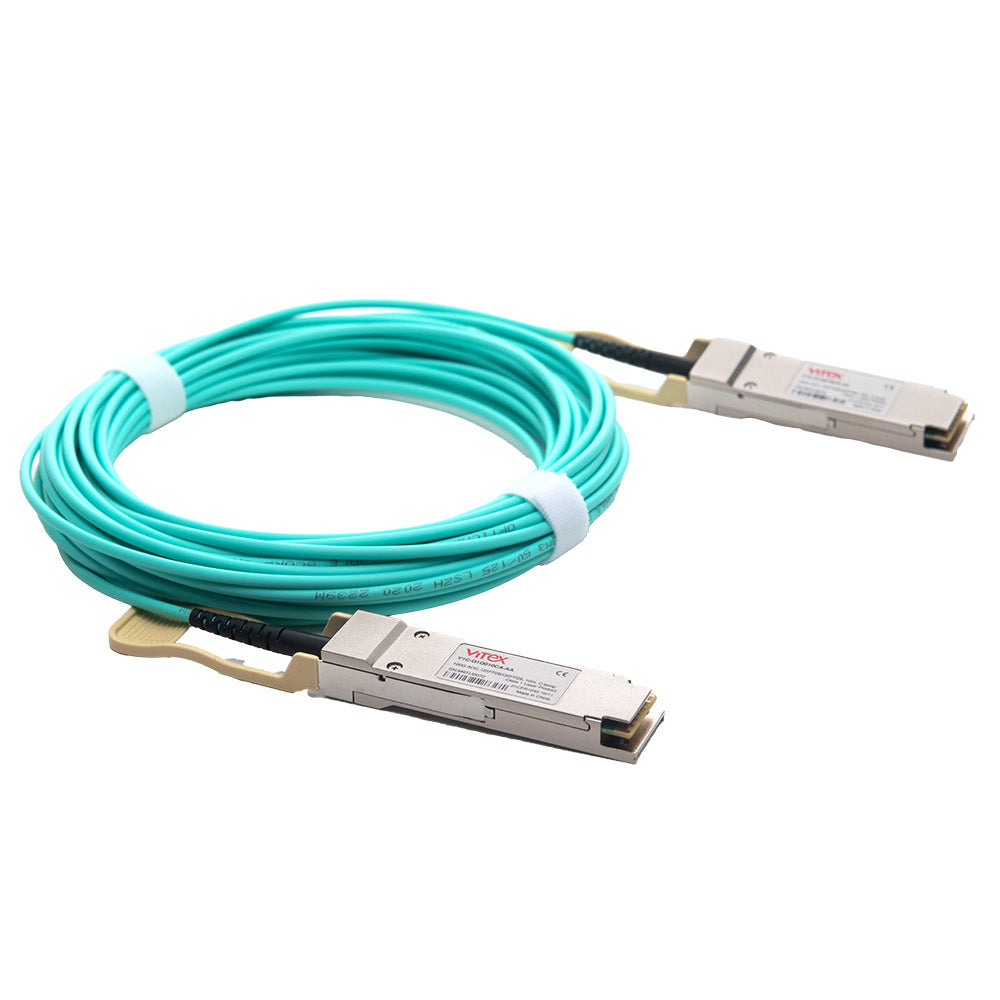

AOC 200G QSFP28-DD

Vitex Part #: V2C-D1DyyyC-AA

QSFP28-DD AOC is designed to provide a convenient solution for 200G applications in QSFP-DD form factor.

Features
Specifications
Applications
FAQs
Datasheet

Up to 25.78 Gbps per channel 8-channel full-duplex Single 3.3 V power supply
Low-power consumption: 3.3 W per cable end Up to 150 m " with OM3 fibers Hot pluggable
QSFP-DD QSFP-DD MSA/CMIS compliant Commercial operating case temperature range: 0 to 70°C
LSZH, LSZH/OFNR or OFNP-rated cables RoHS/REACH compliant

Form Factor	QSFP-DD
Data Rate	200G
Wavelength	850nm
Distance	<100m
Cable Length	Up to 150m
Protocol	Ethernet
Temperature	Commercial (0–70°C)
Extender Type	Cable

AI Data Centers Data Center Interconnect High Performance Computing (HPC)

Q: What data rate does this AOC support?
A: This active optical cable supports 200G data rate using the QSFP-DD form factor.

Q: What lengths are available?
A: This AOC is available in lengths up to <100m. Contact Vitex for custom length options.

Q: What is the advantage of an AOC over a passive copper cable?
A: AOCs offer significantly longer reach than passive copper DACs, lower weight, better EMI immunity, and lower power consumption at longer distances — ideal for rack-to-rack or inter-row connections in data centers.

Q: What applications is this AOC suited for?
A: It is designed for AI Data Centers, Data Center Interconnect, High Performance Computing (HPC) applications.

Technical Documentation

Access comprehensive technical specifications, mechanical diagrams, and validation reports.
